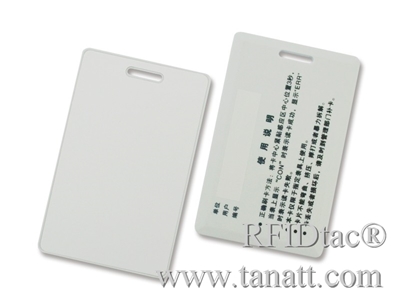

Clamshell Card

Clamshell Card

1. waterproof, dustproof, anti-corrosion, anti-vibration, easy to operate portable, fast, reliable, long life

2. identify stability penetration, has Korfball unique identification code

3. mainly for enterprise / campus card, bus card, highway fees, parking, residential management

● Basic parameters

Types Passive RFID tag
Working frequency 125KHz, 13.56MHz, 860-960MHz
Protocol ISO14443A, ISO15693, ISO / IEC 18000-6C EPC Class1 Gen2

● Physical parameters

Size 86 * 54 * 1.8mm
Packaging Materials PVC + ABS case
Antenna Copper coil, Aluminum etching antenna
Craft 4C offset print,Silk screen print, Inkjet print,Encoding

● Performance parameters

Chip EM4200 / 4305, HT4168, T5577, S50 / S70, Ultralight EV1 / Ultralight C, FM1108, Alien H3, impinjM4D / M4E / M4QT / M5
Storage Related to the chip
Operating mode Can read and write
Data retention > 10 years
Write Endurance 100,000 times
Reading distance 0-5cm, 0-10m (the reading range is related to the working condition and reader)

● Environmental parameters

Operating temperature (-25 ℃ ~ + 55 ℃)
Storage temperature (-35 ℃ ~ + 75 ℃)

● Typical applications

Applications Identification,Attendance System,Access control system,Membership management,Toll collect system

● Package

Packaging Information 100pcs/ box
