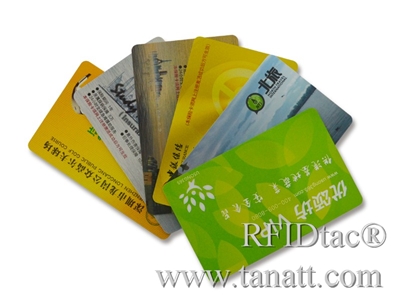

NFC card

NFC card

NFC is a method of providing easy, safe, fast wireless connectivity technology communications, as opposed to having NFC RFID for short distance, high bandwidth, low energy consumption. NFC is compatible with existing contactless smart card technology has become more and more major vendors support the official standard. Again, NFC is a short-range connection protocol, providing a variety between devices easy, safe, rapid and automated communications. Compared with other wireless world connectivity, NFC is a private communication close, NFC is in the access control, public transportation, mobile payment and other fields to play a huge role.

● Basic parameters

Types High-frequency passive RFID tags
Working frequency 13.56MHz

● Physical parameters

Size 86 * 54 * 0.8mm or customized
Packaging Materials PVC, PET
Antenna Aluminum etching antenna, copper coil
Craft 4C Offset Printing, silk screen printing, stamping, encoding,  anti-metal, with adhesive

● Performance parameters

Chip NTAG213, NTAG216
Storage Related to the chip
Operating mode Can read and write
Data retention > 10 years
Endurance 100,000 times
Reading distance 0-5cm (the reading range is related to the working condition and reader)

● Environmental parameters

Working temperature -25 ℃ ~ + 55 ℃
Storage temperature -35 ℃ ~ + 70 ℃

● Typical applications

Applications Access control, membership management, mobile payment, products management

● Packaging

Packaging Information Piece / Roll
