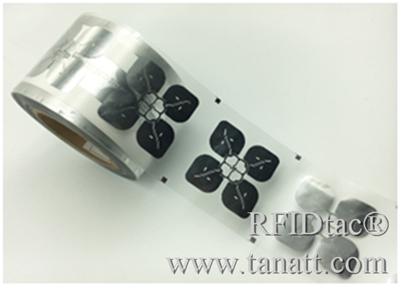

UHF RFID Label
1. multi-tag identification, high sensitivity identification tag
2. linearly polarized design with ultra-high read rates in a particular direction
3. high security performance, has Korfball unique identifier (TID code)
4. can be used in various industries improve production efficiency, management efficiency, security and other anti-changing
|
● Basic Parameters |
|
| Types | UHF passive RFID tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
|
● Physical Parameters |
|
| Size | Can be customized |
| Packaging Material | PET, PVC, Coated paper, PP synthetic paper, Thermal paper |
| Antenna | EtchING aluminum |
|
Craft |
4C offset printing,print ID number,Encoding |
|
● Performance Parameters |
|
| Chip | Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage | Related to the chip |
| Working mode | Read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 views |
| Reading Distance | 0-10m (the reading range is related to the working condition and reader) |
|
●Environmental Parameters |
|
| Operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 65 ℃) |
|
● Typical Applications |
|
| Applications | Logistics, Assets management, Retail management, Pharmaceutical management, Supply chain management |
|
● PackagE |
|
| Packaging Information | Piece/Roll |
