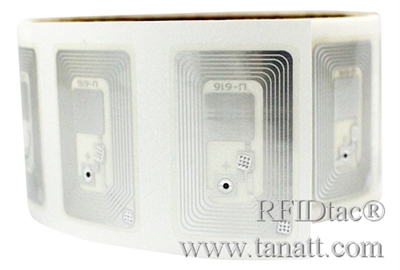

HF Dry / Wet Inlay
1. multi-tag identification, identification tag
2. high sensitivity, high security performance, has Korfball unique identifier (UID code)
3. using various materials (copper paper, PET, thermal paper, DuPont paper, PP synthetic paper ) package
|
● Basic parameters |
|
| Types of | High-frequency passive RFID tags |
| Working Frequency | 13.56MHz |
| Protocol | IS014443A, ISO15693 |
|
● Physical parameters |
|
| size | Size flexible (customized) |
| Packaging Materials | PET + etched aluminum antenna |
| Antenna | Aluminum Etching aluminum |
| Craft | None |
|
● Performance Parameters |
|
| Chip | S50 / S70, Ultralight EV1 / Ultralight C, NTAG213 / 216, I CODE SLIX, FM1108 |
| storage | Related to the chip |
| Operating Mode | read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 views |
| Reading Distance | 0-5cm (read from the work environment and reader related) |
|
● Environmental Parameters |
|
|
Working Temperature |
-25 ℃ ~ + 55 ℃ |
| Storage temperature | -35 ℃ ~ + 70 ℃ |
|
● Typical Applications |
|
| Applications | Logistics, Asset management, Retail management, Pharmaceutical management, Supply chain management |
|
● Packaging |
|
| Packaging Information | Pcs or roll |
