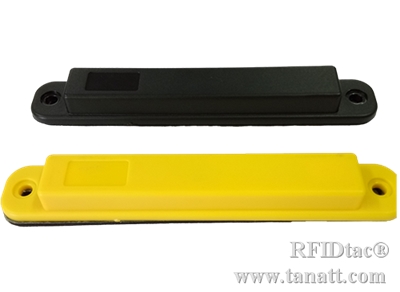

RFID Anti-Metal Tags
1. RFID Anti-Metal Tags
- a good anti-metal properties can be achieved in metal performance long-range reader with anti-metal, high temperature, water, acid and alkali resistance, impact resistance and other characteristics
- multi-tag identification, identification of high sensitivity, fast, with co ball- unique identification code, mainly for warehouse pallets, equipment inspection, asset tags and other metal application support
|
● Basic Parameters |
|
| Types | UHF passive RFID tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
|
● Physical Parameters |
|
| Size | 125 * 21.5 * 12.5mm or customized |
| Packaging Materials | ABS+Gelatin sponge |
| Antenna | Aluminum etching antenna |
| Craft | Silk screen print,Inkjet print,Encoding |
|
● Performance Parameters |
|
|
Chip |
Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage | Related to the chip |
| Operating mode | read and write |
| Data storage time | > 10 years |
| Write Endurance | 100,000 times |
| Reading Distance | 0-10m (the reading range is related to the working condition and reader) |
|
● Environmental Parameters |
|
| operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 75 ℃) |
|
● Typical applications |
|
| Applications | Warehouse management,Asset management |
|
● Packaging |
|
| Packaging Information | 10pcs / bag, 500 pcs/ Box |
2. RFID Acrylic Anti-Metal Tags
- a good anti-metal properties can be achieved in metal performance remote reader, indoor and outdoor can be generic, with a high temperature, water, acid and alkali resistance, impact resistance and other characteristics
- multi-tag identification, identification of high sensitivity, fast with Korfball unique identification code
- mainly for warehouse pallets, equipment inspection, asset tags and other metal application support
|
● Basic Parameters |
|
| Types | UHF passive RFID tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
|
● Physical Parameters |
|
| Size | 80 * 30 * 4mm, 60 * 30 * 4mm or customized |
| Packaging Materials | Acrylic + adhesive |
| Antenna | Etched aluminum |
| Craft | 4C Offset printing,Inkjet print,Encoding |
|
● Performance Parameters |
|
| Chip | Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage | Related to the chip |
| Operating mode | Can read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 times |
| Reading distance | 0-10m (the reading range is related to the working condition and reader) |
|
● Environmental Parameters |
|
| operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-35 ℃ ~ + 75 ℃) |
|
● Typical applications |
|
| Applications | Warehouse managemen,Asset management |
|
● Package |
|
| Packaging Information | 150pcs / box |
3. RFID Gas Cylinder Labels
- good resistance to metal, can achieve long-range read and write performance in the metal, indoor and outdoor can be universal, with high temperature, water, acid and alkali, impact resistance and other characteristics
- multi-label identification, identification of high sensitivity, speed, with a unique ball co-identification code
- Mainly used in the management of metal articles and special equipment such as electronic equipment, asset maintenance, gas cylinder, elevator maintenance, auto parts, high pressure boiler, high pressure vessel, high pressure pipeline, lifting machinery and amusement facilities.
● Basic Parameters
● Physical Parameters
● Performance Parameters
● environmental parameters
● Typical applications
● Package
Types
Passive RFID tag
Working Frequency
13.56MHz, 860-960MHz
Protocol
ISO14443A, ISO15693, ISO / IEC 18000-6C EPC Class1 Gen2
Size
62 * 32 * 8mm or customized
Packaging Materials
ABS+Gelatin sponge
Antenna
Aluminum etching antenna
Craft
4C offset printing,Encoding
Chip
I CODE SLIX, FM1108, impinjM4D / M4E / M4QT / M5
Storage
Related to the chip
Operating mode
read and write
Data Retention
> 10 years
Write Endurance
100,000 times
Reading distance
0-5cm, 0-10m (the reading range is related to the working condition and reader)
Operating temperature
(-25 ℃ ~ + 55 ℃)
Storage temperature
(-35 ℃ ~ + 75 ℃)
Applications
Industrial gas cylinders, Household gas cylinder storage and logistics, Inspection management
Packaging Information
150pcs / box
